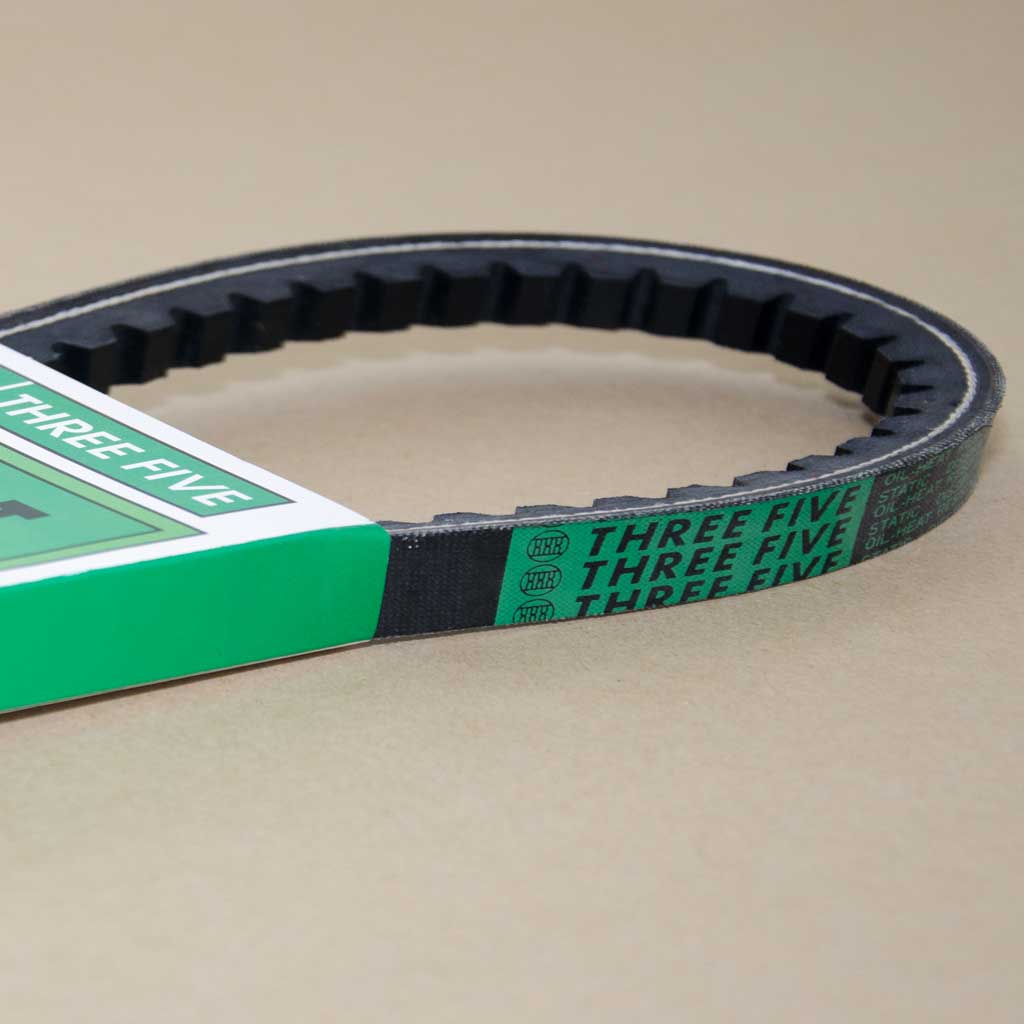

BX 90 Cogged Belt
[In stock and available for immediate pickup or delivery across Canada/USA]
International orders, please contact us.
Brand: THREE FIVE
Model: BX90
Made in Thailand
Information
THREE FIVE Cogged Wedge belts are made with premium materials that work well with small diameter pulleys and allow for improved heat dissipation. Signature bonding method allows these belts to sustain high power transmission levels at high engine speeds.
Manufactured with a durable layer of continuous polyester cable , these belts withstand higher dynamic loads and resist flexing from shocks and fatigue. Contact us directly for any unlisted sizes.
- Heavy duty rubber base with pre-stretched polyester tension cord delivers exceptional belt life
- Meets RMA standards for Oil and Heat Resistance and Static Conductivity
- High tensile strength allows for greater power transmission applications
- Resists abrasion and wear
Common Applications
- Industrial fans
- Woodworking equipment
- Heavy duty compressors
- Construction machinery
- Manufacturing drives
- Other pumps, presses and heavy duty drives

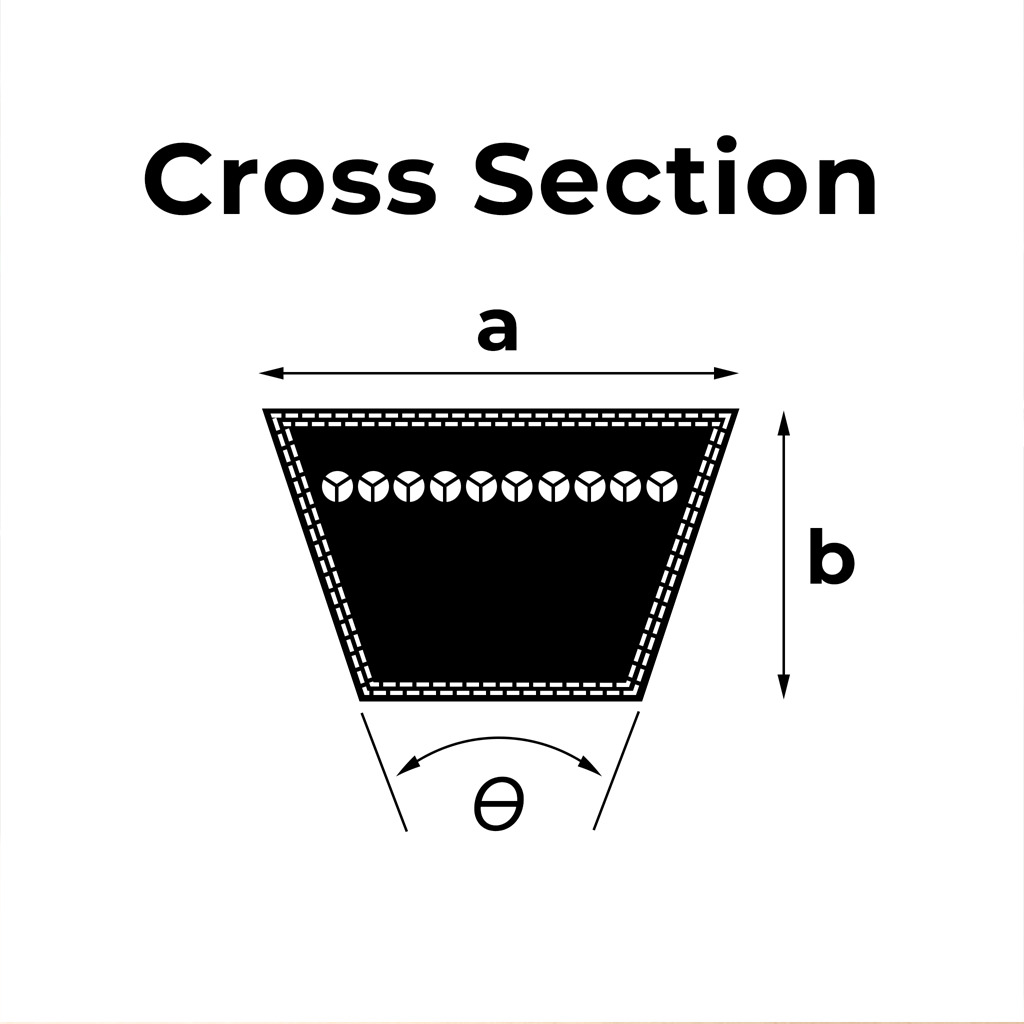

Specifications
| Inside Length | 90 (in) |
| Width (a) |
5/8 (in); 16.5 (mm) |
| Height (b) | 7/16 (in); 11 (mm) |
| Angle (ϴ) | 40 (°) |
| Approx. Weight | 0.99 (lbs); 449 (g) |
All dimensions are nominal
