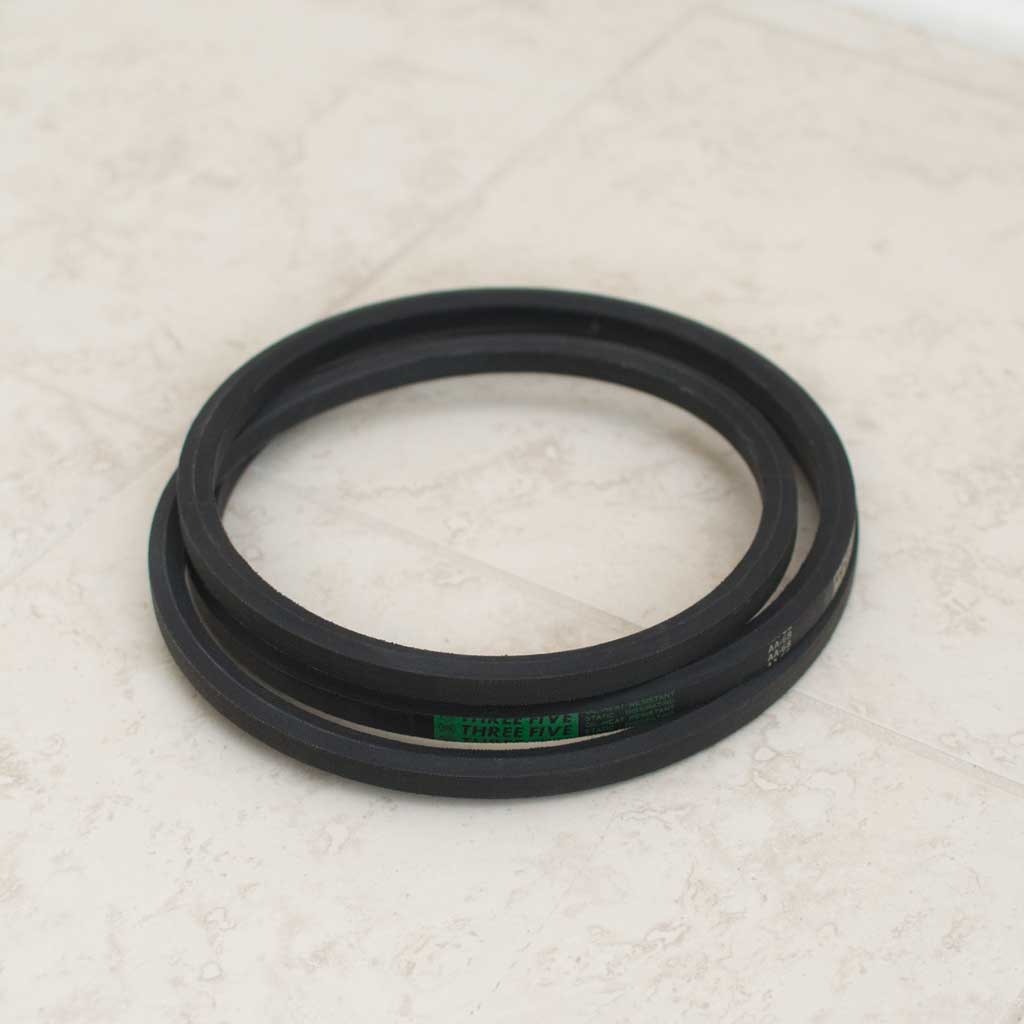

AA68 Double Angle V-Belt
[In stock and available for immediate pickup or delivery across Canada/USA]
International orders, please contact us.
Brand: THREE FIVE
Model: AA68
Made in Thailand
Information
THREE FIVE Double Angle V-belts are made with premium materials and are essentially multiple standard belts. Either side of the belt can be used as a driving surface. They are used on equipment where a number of shafts need to be driven in opposite directions at the same time by a single belt.
Manufactured with a durable layer of continuous polyester cable , these belts withstand higher dynamic loads and resist flexing from shocks and fatigue. Contact us directly for any unlisted sizes.
Key Features
- Heavy duty rubber base with pre-stretched polyester tension cord delivers exceptional belt life
- Meets RMA standards for Oil and Heat Resistance and Static Conductivity
- High tensile strength allows for greater power transmission applications
- Resists abrasion and wear
Common Applications
- Cotton gins
- Rock crushers
- Grain combines
- Manufacturing and industrial drives
- Construction machinery
- Material sorting equipment
- Other pumps, presses and heavy duty drives
Specifications
| Outside Length | 71.4 (in) |
| Pitch Length | 70.1 (in) |
| Width (a) |
1/2 (in); 12.7 (mm) |
| Height (b) | 13/32 (in); 10.3 (mm) |
| Angle (ϴ) | 40 (°) |
| Approx. Weight | 0.62 (lbs); 279 (g) |
All dimensions are nominal
